Perkins D6620 TuckAway® Tipper-Bar Lifter – High-Performance & Low Maintenance

🚛 Now Available at Cart Tipper USA – Reliable, Durable & Grease-Free

Perkins D6620 TuckAway® – Engineered for Efficiency & Operator Comfort

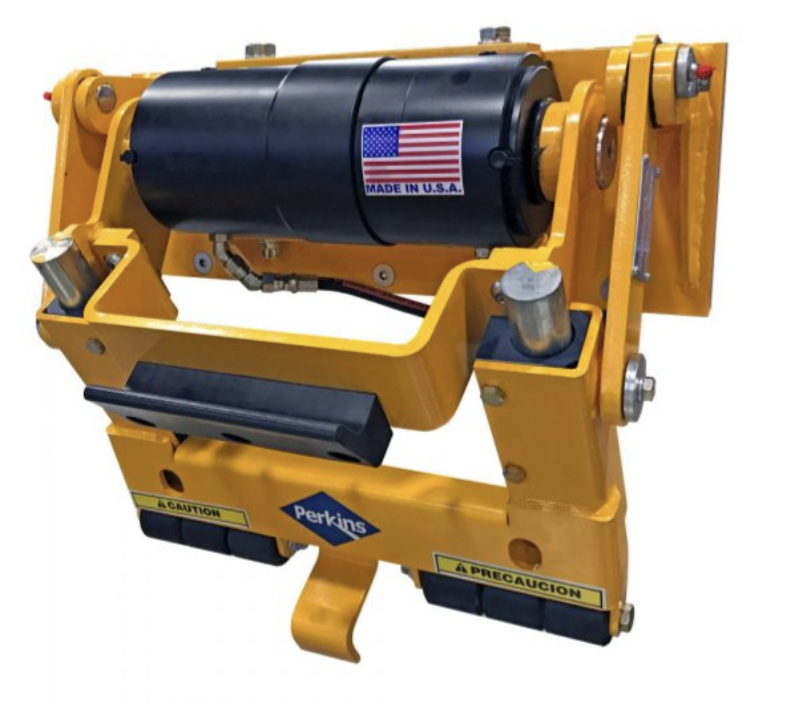

The Perkins D6620 TuckAway® Tipper-Bar Lifter is a fully tipper-bar compatible solution, designed for rear-load refuse trucks with kick-bar systems. Featuring a powerful 27K Helical Rotary Actuator, this lifter delivers 27,000 inch-lbs of torque at 3000 psi, ensuring smooth and efficient lifting for ANSI Type B carts up to 96 gallons.

With self-lubricating composite slides, the D6620-27K is completely grease-free, making it an environmentally friendly, low-maintenance option. Its spring-loaded lower latch provides secure cart engagement on various terrains, reducing operator fatigue and minimizing damage to carts.

Built for maximum efficiency, easy maintenance, and long-term durability, the D6620 TuckAway® is the perfect choice for waste collection fleets that need a reliable and powerful tipper-bar lifter.

1234567

Perkins D6620 TuckAway® Tipper-Bar Lifter Specifications

✔ Load Type: Rear-load with kick-bar
✔ Cart Compatibility: US 2-Bar; Type B (ANSI Z245.60-2008)
✔ Operation: Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi
✔ Width: 22 inches
✔ Height: 34 inches
✔ Mounting Height: 38 ½ – 42 inches
✔ Cycle Time: 6-8 seconds per lift at 3 GPM flow rate
✔ Lifting Capacity: 400 lbs at 1,550 PSI
✔ Dump Angle: 45 degrees

📥 Download Perkins D6620 Brochure
📥 Download Perkins D6620 Service Manual

Why Choose the Perkins D6620 TuckAway®?

✅ Powerful 27K Helical Rotary Actuator – Delivers high torque for smooth and efficient lifting.
✅ Grease-Free & Low Maintenance – Composite slides and self-lubricated bushings require no greasing, reducing maintenance costs.
✅ Back-Saving Cart Engagement – Spring-loaded lower latch ensures a secure grip on carts, even on uneven ground.

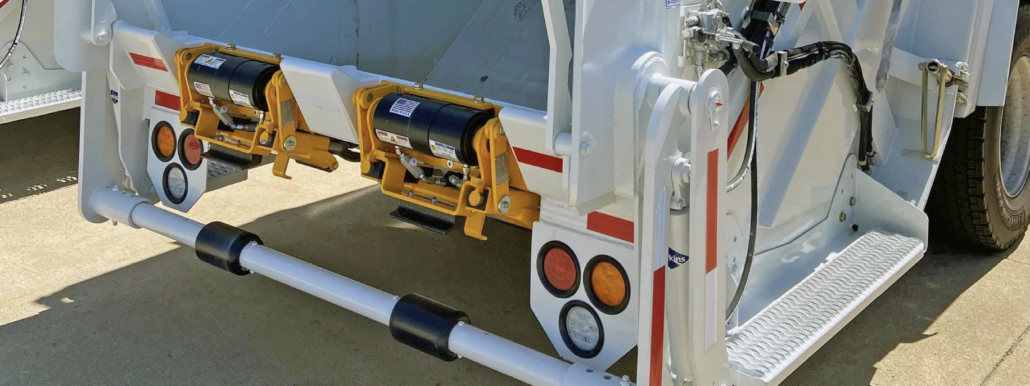

✅ Tipper-Bar/Kick-Bar Compatible – Fits seamlessly with most kick-bar equipped trucks, allowing for efficient mixed collection routes.
✅ Lower Mounting Height (38 ½ – 42 inches) – Improved accessibility and easier integration with existing truck configurations.
✅ Durable Powder-Coated Finish – Safety Yellow coating protects against corrosion and wear.
✅ Easy Bolt-On/Off Installation – Simplifies mounting and servicing for fleet operators.
✅ ANSI Type B Cart Compatibility – Handles industry-standard US 2-bar carts up to 96 gallons.
✅ Proven Performance – Thousands of units in the field, trusted by municipal and private haulers.
✅ ISO 9001 Certified Manufacturing – Built to the highest industry standards.

Advanced 27K Actuator – Superior Strength & Efficiency

🔹 Higher torque with lower weight – Improves efficiency and reduces strain on truck hydraulics.
🔹 Two-Part Casted Body – Easier to open and service, minimizing downtime.
🔹 Fewer Moving Parts – Less wear and tear for extended lifespan.
🔹 Even Load Distribution – Unlike rack-and-pinion systems, which concentrate stress on a single tooth, Perkins actuators distribute force across all teeth for maximum durability.

📞 Need help choosing the right Perkins lifter for your fleet? Call us today!

Upgrade Your Fleet with the Perkins D6620 TuckAway® Tipper-Bar Lifter

The Perkins D6620 TuckAway® Tipper-Bar Lifter is the ultimate solution for refuse collection fleets looking for a powerful, low-maintenance, and efficient lifter.
