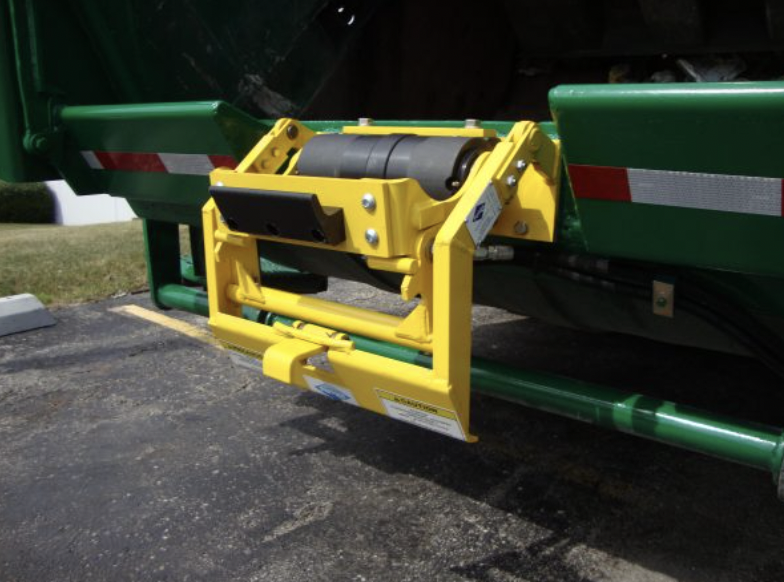

• Yellow hydraulic rear load cart tipper with a black motor mounted on the back of a green garbage truck for commercial waste collection.

Perkins D6400 TuckAway™ Cart Lifter – Economical, Durable & Low-Maintenance

Now Available at Cart Tipper USA – High Performance at a Lower Cost
Price: $3,786.34


Perkins D6400 TuckAway™ – Reliable & Affordable Rear-Load Lifter

The Perkins D6400 TuckAway™ Cart Lifter delivers high performance at an economical price, proving that affordability doesn’t mean compromising on quality. Designed for tipper-bar/kick-bar equipped refuse trucks, this lifter features a powerful 27K Helical Rotary Actuator, providing 27,000 inch-lbs of torque at 3000 psi for smooth and efficient lifting.

With a compact, low-profile design, the D6400 can recess under the hopper and, when paired with a sill extension modification kit, allows rear-loaders to operate seamlessly on both commercial and residential routes. The unit’s self-lubricated composite bearings eliminate the need for greasing, reducing maintenance and ensuring long-lasting durability.

For fleets looking for an economical yet robust lifting solution, the Perkins D6400 TuckAway™ is the perfect choice.

Perkins logo featuring green lettering inside a white diamond on a dark green background, representing Perkins cart tippers and waste handling equipment.

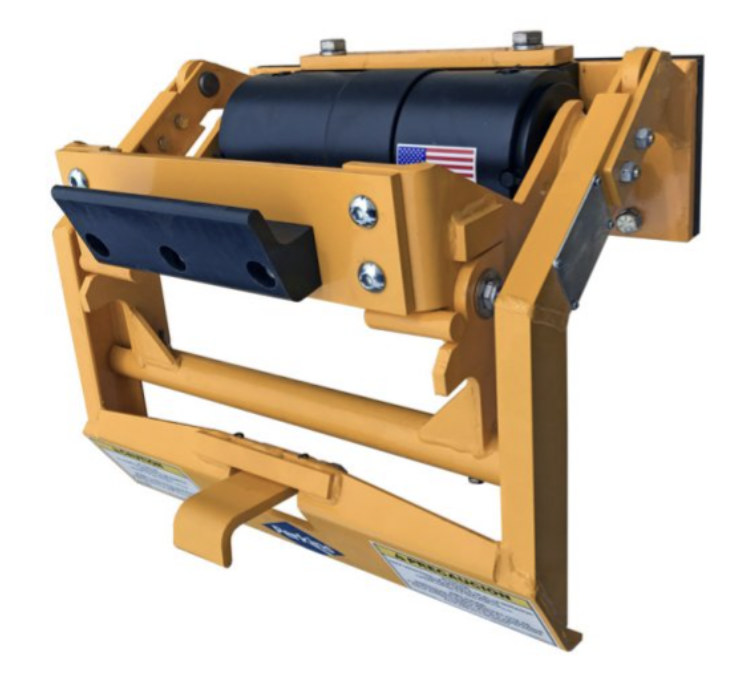

Yellow USA-made hydraulic cart tipper featuring a black motor, heavy-duty steel lifting frame, and rubber gripping bar for commercial waste collection.
Cart Tipper USA call-to-action graphic promoting cart lifters, cart tippers, replacement parts, and support services for commercial waste equipment.
Cart Tipper USA quote request graphic inviting customers to request pricing on cart tippers, cart lifters, and commercial waste handling equipment.

Perkins D6400 TuckAway™ Cart Lifter Specifications

✔ Load Type: Rear-load with kick-bar
✔ Cart Compatibility: US 2-Bar; Type B (ANSI Z245.60-2008)
✔ Operation: Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi
✔ Width: 20 ⅜ inches
✔ Height: 17 inches
✔ Mounting Height: 38 ½ – 41 inches
✔ Cycle Time: 6-8 seconds per lift at 3.5 GPM flow rate
✔ Lifting Capacity: Up to 400 lbs
✔ Dump Angle: 45 degrees

📥 Download Perkins D6400 Brochure
📥 Download Perkins D6400 Service Manual


Why Choose the Perkins D6400 TuckAway™?

✅ Powerful 27K Helical Rotary Actuator – Delivers maximum torque for fast, smooth lifting.
✅ Low-Maintenance, Grease-Free Bearings – Self-lubricated composite slides eliminate the need for greasing, reducing downtime.
✅ Spring-Loaded Lower Latch – Protects carts from damage while ensuring secure and easy lifting.
✅ Economical & High-Performance – Delivers superior lifting power at a lower cost, making it an excellent budget-friendly option.
✅ BreakAway Feature (D6405 Model) – Protects the unit from damage if struck, minimizing repair costs.
✅ ANSI Type B Cart Compatibility – Handles industry-standard US 2-bar carts, up to 96 gallons.
✅ Safety Yellow Powder-Coated Finish – Durable, corrosion-resistant, and highly visible.
✅ Adjustable Flow Control Valve – Customizable speed and performance for optimal efficiency.
✅ Easy Bolt-On/Off Mounting Plate – Simplifies installation and servicing.
✅ Proven Performance – Thousands of units in the field, trusted by municipal and private haulers.
✅ ISO 9001 Certified Manufacturing – Built to the highest industry standards.


Advanced 27K Actuator – Built for Durability & Strength

🔹 Higher torque with lower weight – Improves overall efficiency and performance.
🔹 Two-Part Casted Body – Easier to open and service, reducing maintenance time.
🔹 Fewer Moving Parts – Minimizes wear and tear, increasing longevity.
🔹 Even Load Distribution – Unlike rack-and-pinion systems, which concentrate stress on a single tooth, Perkins actuators distribute force across all teeth for maximum durability.

📞 Need help choosing the right Perkins lifter for your fleet? Call us today!

Upgrade Your Fleet with the Perkins D6400 TuckAway™ Cart Lifter

The Perkins D6400 TuckAway™ Cart Lifter is an affordable, high-performance solution for refuse fleets that demand efficiency, durability, and cost-effective operation.

📌 Contact Cart Tipper USA to Find the Right Tipper for Your Fleet!
