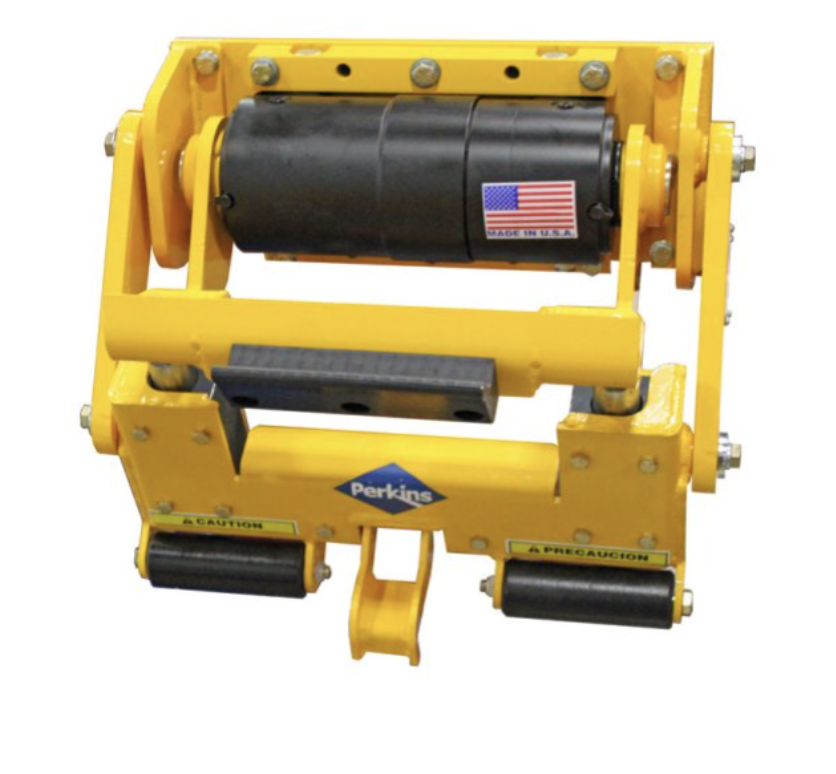

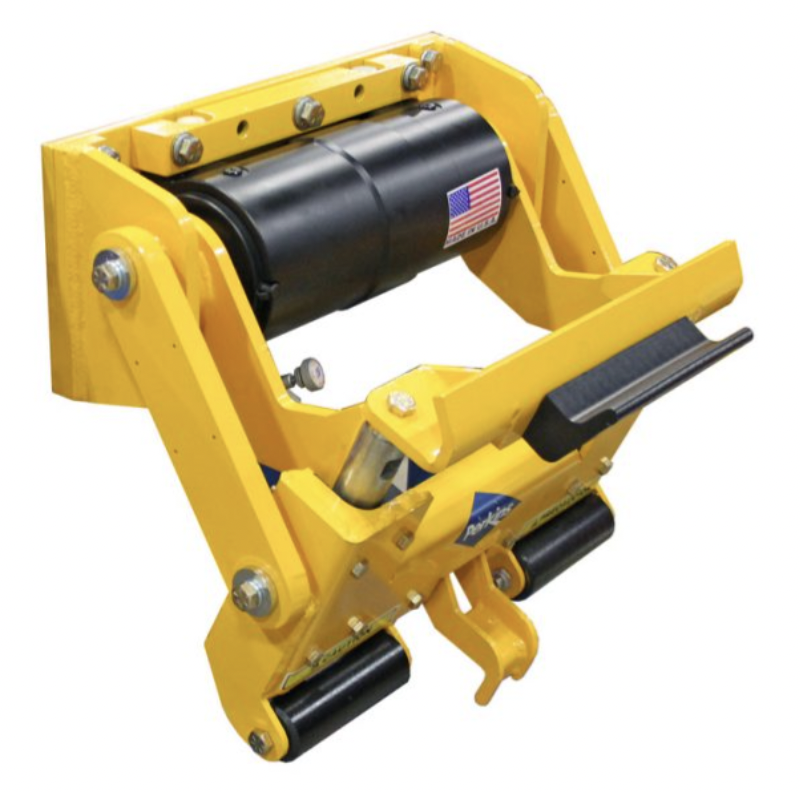

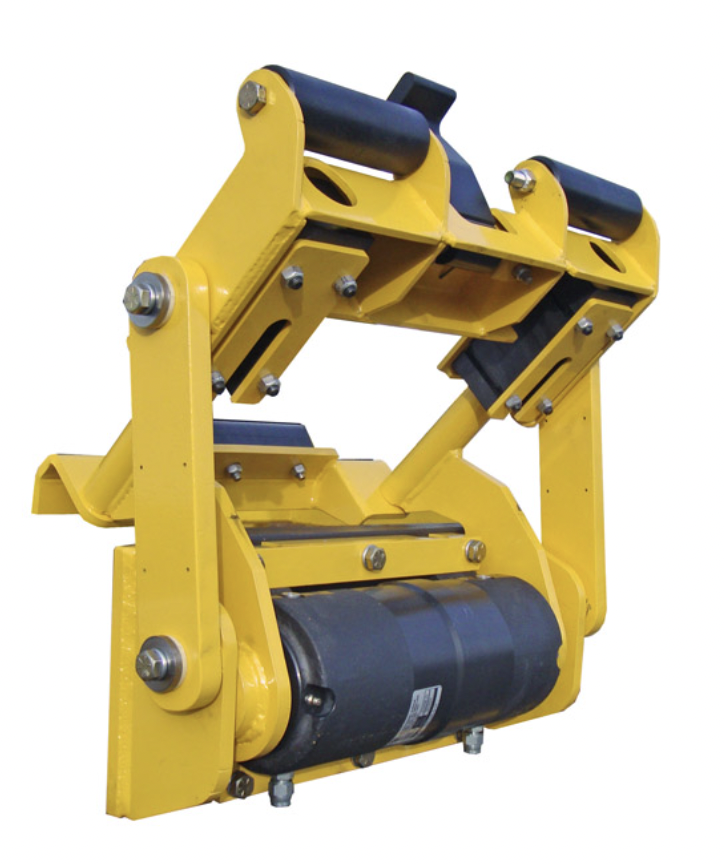

Perkins D6220B TuckAway® Lifter – The Ultimate Rear-Load Cart Lifter

🚛 Now Available at Cart Tipper USA – Designed for Mixed Collection Routes

Perkins D6220B TuckAway® – Powerful, Durable & Maintenance-Free

The Perkins D6220B TuckAway® Lifter is engineered for rear-load refuse trucks, offering smooth, dependable lifting action with a powerful 27K Helical Rotary Actuator. Designed to be tipper-bar/kick-bar compatible, this lifter allows for seamless operation on mixed residential and commercial routes.

Featuring plastic-lined composite slides, the D6220B is completely grease-free, reducing maintenance time while promoting an environmentally friendly waste collection solution. The spring-loaded lower latch provides secure, back-saving cart engagement, even on uneven terrain or varying cart heights.

With thousands of units in operation nationwide, the D6220B is a proven leader in the waste handling industry—built for performance, efficiency, and reliability.

1234

Perkins D6220B TuckAway® Lifter Specifications

✔ Load Type: Rear-load
✔ Cart Compatibility: US 2-Bar; Type B (ANSI Z245.60-2008)
✔ Operation: Helical Rotary Actuator with 27,000 inch-lbs of torque at 3000 psi
✔ Width: 18 ¾ inches
✔ Height: 18 ¾ inches
✔ Mounting Height: 36 – 41 inches
✔ Cycle Time: 6-8 seconds per lift at 3.5 GPM flow rate
✔ Lifting Capacity: Up to 400 lbs
✔ Dump Angle: 45 degrees

📥 Download Perkins D6220B Brochure
📥 Download Perkins D6220B Service Manual

Why Choose the Perkins D6220B TuckAway®?

✅ Powerful 27K Helical Rotary Actuator – Higher torque with lower weight for smooth, reliable operation.
✅ Low-Maintenance, Grease-Free Design – Plastic-lined composite slides eliminate the need for greasing, reducing downtime.
✅ Spring-Loaded Lower Latch – Protects carts from damage while ensuring secure, easy lifting.
✅ Designed for Mixed Collection Routes – Works with both commercial and residential pickups, increasing efficiency.
✅ Fully Compatible with Tipper-Bar/Kick-Bar Trucks – Seamlessly integrates with ANSI Type B carts, up to 96 gallons.
✅ Durable & Corrosion-Resistant – Safety Yellow powder-coated finish for maximum durability.
✅ Adjustable Flow Control Valve – Customizable speed and operation for optimal performance.
✅ Easy Bolt-On/Off Mounting Plate – Simplifies installation and servicing.
✅ Proven Performance – Thousands of units in the field, trusted by municipal and private haulers.
✅ ISO 9001 Certified Manufacturing – Built to the highest industry standards.

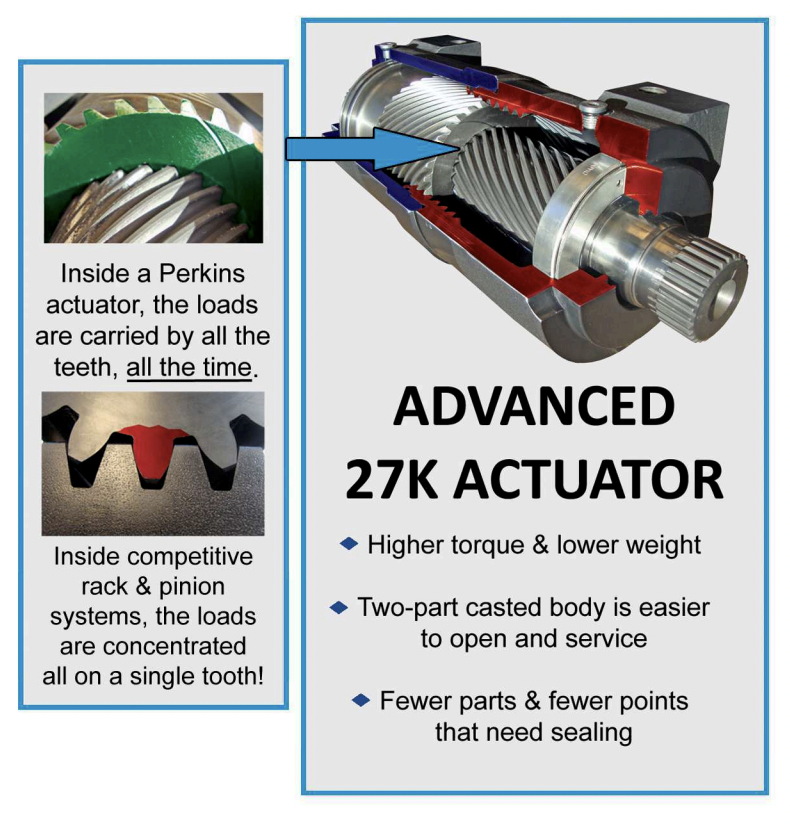

Advanced 27K Actuator – Stronger & More Efficient

🔹 Higher torque with lower weight – Improves overall efficiency and performance.
🔹 Two-Part Casted Body – Easier to open and service, reducing maintenance time.
🔹 Fewer Moving Parts – Minimizes wear and tear, increasing longevity.
🔹 Even Load Distribution – Unlike rack-and-pinion systems, which concentrate stress on a single tooth, Perkins actuators distribute force across all teeth for maximum durability.

📞 Need help choosing the right Perkins lifter for your fleet? Call us today!

Upgrade Your Fleet with the Perkins D6220B TuckAway® Lifter

The Perkins D6220B TuckAway® Lifter is the ultimate solution for waste collection fleets, delivering high performance, low maintenance, and long-term reliability.
