Diamondback Model 500 Rear Load Cart Tipper – Heavy-Duty Performance & Maximum Ground Clearance

High-Strength Design. Smooth Operation. Built for Reliability.

The Diamondback Model 500 Rear Load Cart Tipper, available at Cart Tipper USA, is designed for waste haulers who need a rugged, reliable, and low-maintenance lifter. Featuring a patented shock-absorbing latching system, aircraft-grade self-aligning bushings, and a powerful 26K rotary actuator, the Model 500 delivers exceptional durability, superior cart engagement, and smooth lifting performance.

With maximum ground clearance, a deep dump angle, and fewer moving parts, this tipper provides long-lasting efficiency and minimal maintenance costs for rear-load waste collection trucks.

1234

Why Choose the Diamondback Model 500 Rear Load Cart Tipper?

✅ Eliminates Bottom Bar Cart Damage – Patented spring bottom bar latching system absorbs shock during the dump cycle, ensuring above-ground release and preventing cart damage.

✅ Easy Cart Engagement – Sweeping action of the lifter allows for smooth, effortless cart pickup, even on uneven ground.

✅ High & Deep Dump – Steep 45° dump angle allows for high-throw emptying into the hopper, ensuring faster, more efficient collection cycles.

✅ Maximum Ground Clearance – Rotates under the hopper, providing the most possible ground clearance available for rear-load waste trucks.

✅ Heavy-Duty Lifting & Drive Arms – ¾” solid steel lifting and drive arms provide exceptional durability under high-stress conditions.

✅ Low-Maintenance Self-Aligning Ball Bushings –

  • Made of hardened steel, corrosion-resistant, and shockproof.
  • Housed in aircraft-grade aluminum to prevent rust and simplify repairs.

✅ 26K Rotary Actuator – The largest actuator in the lifter industry, producing 26,000 ft/lb of torque at 3,000 psifor superior lifting power.

Diamondback Model 500 – Dimensions, Key Features & Performance Specs

✔ Fits all ANSI Z245.30 (domestic two-bar style) carts & meets ANSI Z245.60 specifications
✔ Lifting capacity: 400 lbs @ 1600 psi
✔ Cycle time: 6-8 seconds at 3.2 gpm
✔ Dump angle: 45° for high, deep cart emptying
✔ Mounting height: 37” to 41” (mounting plate included)
✔ Heat-treated pivot pins for long-lasting durability
✔ 3/8” thick faceplate for added strength
✔ Powder-coated finish for corrosion resistance
✔ Two-year limited warranty
✔ Made in the USA – Built for Performance & Longevity

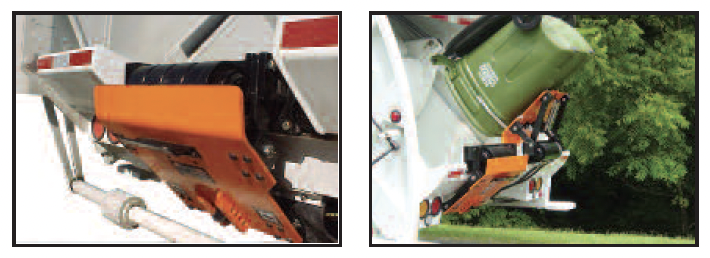

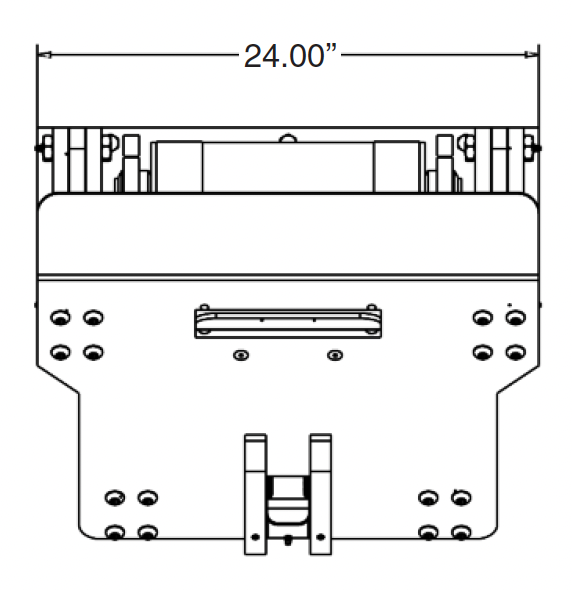

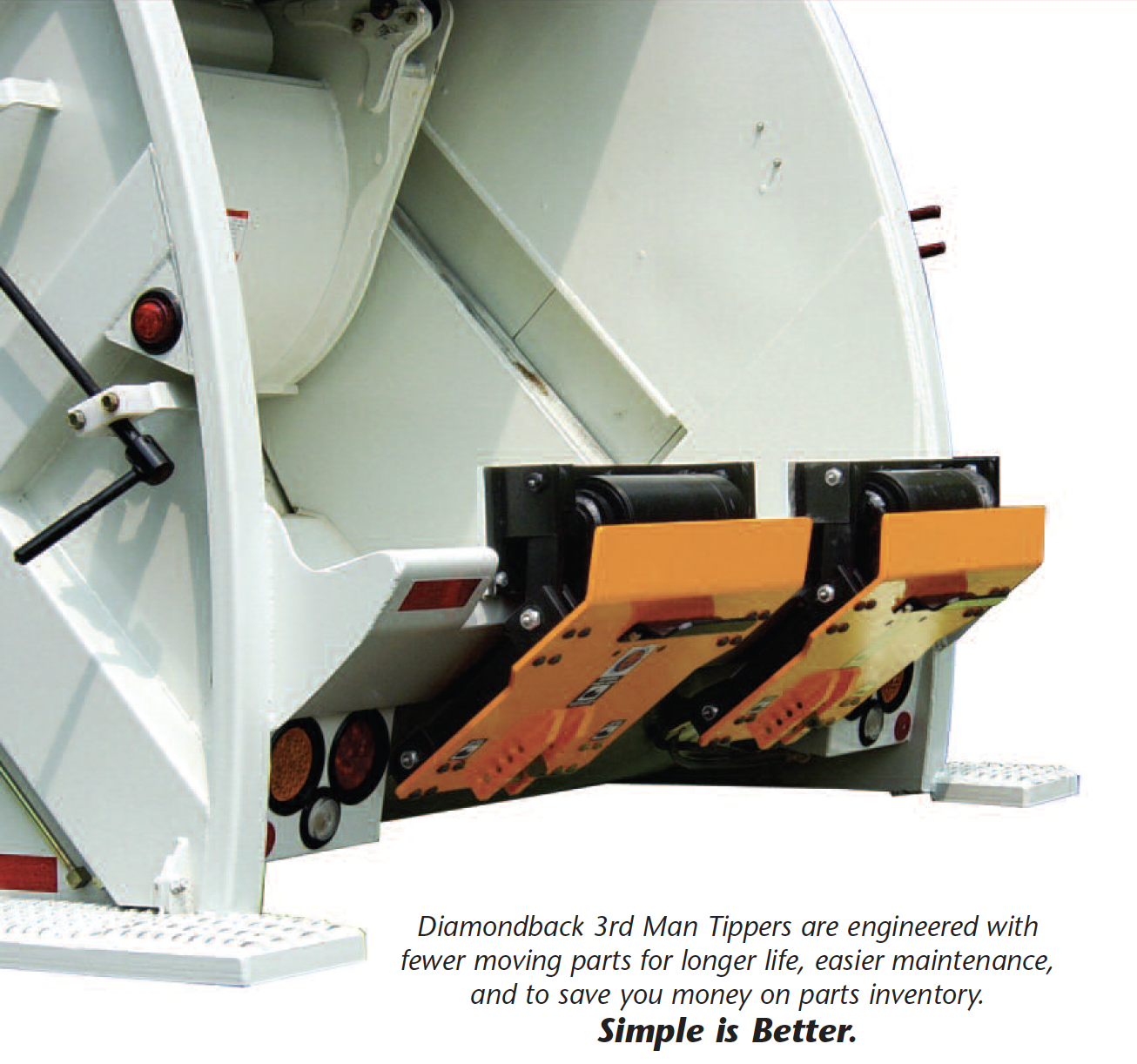

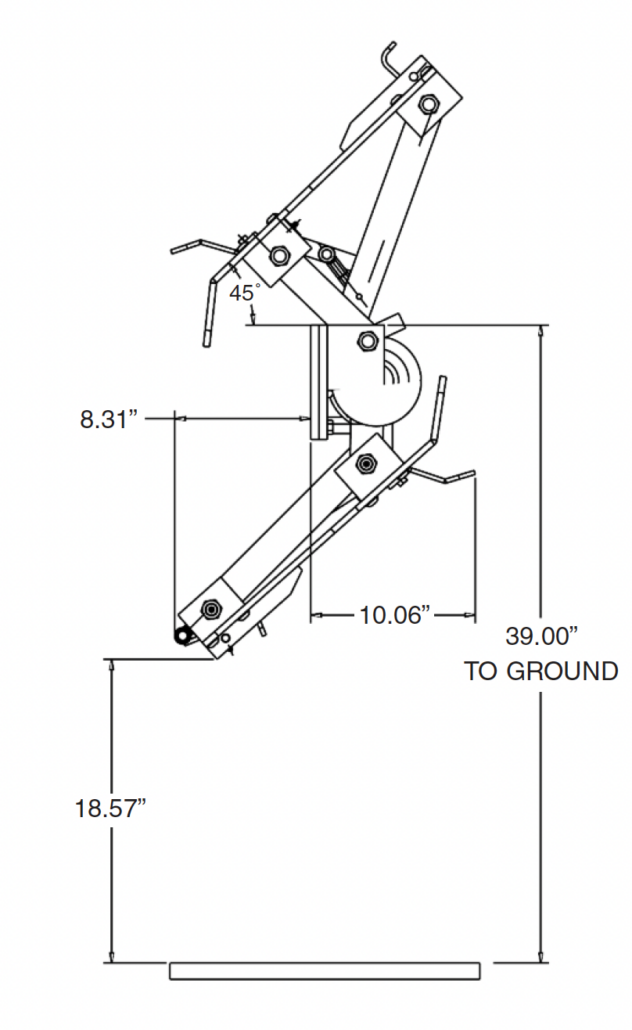

Ground Clearance & Mounting Dimensions

Measurement Dimension
Dump Angle 45°
Overall Height 18.57”
Faceplate Width 8.31”
Mounting Height 39.00”
Ground Clearance 24.00”
Back Plate Thickness 10.06”
